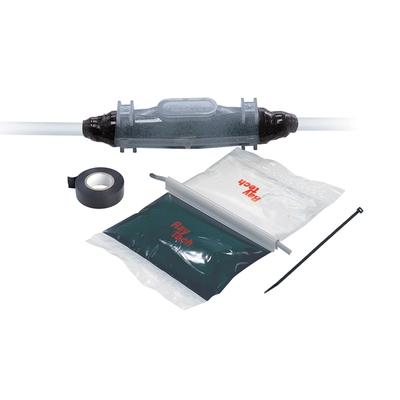

Rubber Joint

Straight or branch joint with bicomponent cast quick cross linking rubber insulation for 0.6/1 kW cables.

Rubber Joints have extremely robust mechanical characteristics, as well as dielectric and thermal properties. This makes them ideal for areas of potential heavy abrasion or mechanical stress. Combine all this with an unlimited shelf life, low toxic fume emissions and being re-enterable, and you have a joint suited for some of your harshest conditions.

  • Quick cross linking rubber (only 15 minutes)
  • Very high mechanical and elastic characteristics
  • For 0.6/1 kV extruded cables
  • Unlimited shelf life

Electrical performance: CEI EN 50393 with connectors complying with EN61238-1 (with testing under water head and water between the cable cores) Class 2 in accordance with CEI 64-8.

Operating Temp: 90˚C

Installation temperature: -15°C / +45°C

Rubber Joint

POA / Each

Download Download Product Details

Refer Catalogue Page: 78 - 79
