OHUG100% NZ

J-Box

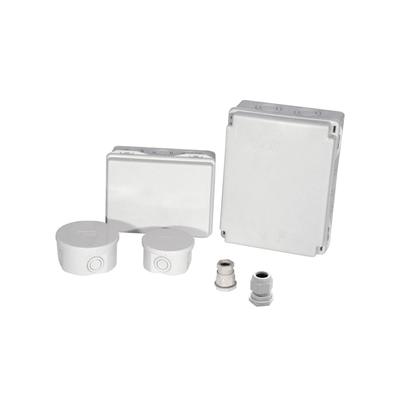

Snap shut enclosures with perforated knockouts.

Enclosure with snap shut cover and perforated knockouts for faster mounting of cable glands. Very high mechanical and flame retardant properties. Nontoxic, re-enterable only by means of a tool. The screwless design prevents screws rusting over time due to moisture and allows for easy re-entry. Screw caps are also supplied for the wall mounting screws along with 3 cable glands and a stopping plug for vertical filling.

  • Can be insulated with Magic Power Gel, Magic Gel, Wonder Gel (IP68)
  • Re-enterable only with the use of a tool
  • Also suitable for vertical filling
  • Excellent shock-resistance
  • Self-extinguishing
  • Halogen Free

Electrical Performance: CEI 23-48, IEC 60670

Degree of protection: empty IP55 filled with Gel Raytech IP68

Halogen free: according to CEI EN 50267 2-2

Self-extinguishing and resistant to abnormal heat and fire: Glow wire test at +960°C according to EN60695-2-11

J-Box
Download Download Product Details

Refer Catalogue Page: 100 - 101
