OHUG100% NZ

AV6400 HLS Cable Stripper for Non-Vulcanized Semiconductive Layer

APPLICATION RANGE: ø16-41mm
INSULATION THICKNESS: 0-2mm
SUGGESTED APPLICATION: Non vulcanized, peelable semiconductive layer

Technical Characteristics:

  • Strips the non-vulcanised semiconductive layer of MV cables
  • Longitudinal, helical and circular cuts
  • Positioned on the cable like a vice system
  • Stop clamp to limit the stripping length
  • Step-by-step depth adjustment
  • Max. rotating diameter 130mm
  • Replaceable blade - use order code AV6499
  • Stripper and stop clamp are spring-loaded to hold their positions
  • The incision depth can be adjusted from 0 to 0.9 mm with 0.1mm increments each by turning the corresponding knob
  • Reduced rotation enables you to work in areas with limited space
  • Perfect precise circular cut
  • No incisions on surface below

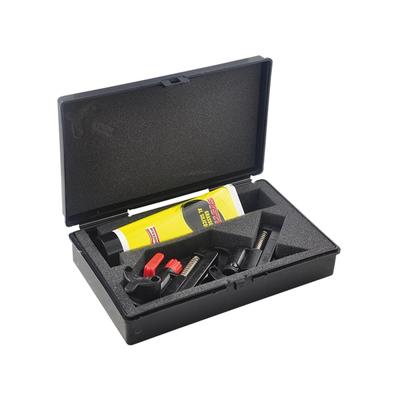

AV6400 Set Contains:

  • HLS - cable stripper: AV6410
  • Stop clamp: AV6411
  • Tube of silicone grease: AG1013
  • Rigid plastic case: AB6400

Please note: AV6411 Stop Clamp can be supplied as a spare / replacement part upon request. AV6410 Stripper cannot be purchased separately.

Weight & Dimensions: 175 x 65 x 50mm / 600g

NOT SUITABLE FOR WORK UNDER VOLTAGE

AV6400 HLS Cable Stripper for Non-Vulcanized Semiconductive Layer

POA / Each

Download Download Product Details

Refer Catalogue Page: 315
