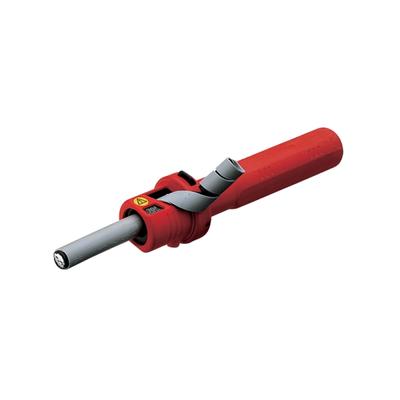

FSI 150 Insulated Wire Stripper for ABC Cables (with Inserts 6mm - 150mm)

APPLICATION RANGE: 6-150mm²
INSULATION THICKNESS: Stripping inserts are pre-adjusted
SUGGESTED APPLICATION: ABC cables (overhead, twisted, insulated)

Technical Characteristics:

• Designed to work on live parts up to 1000V AC and 1500V DC
• Stripping depth adjustment built inside the handle
• Insulated handle with bayonet connection
• Stripping length adjustable from 20 to 80mm
• Scale marked on the built-in device to display the preset length
• Interchangeable blade - use code 17179
• Easy handling through preadjusted inserts - please see product options
• Suitable for work on live parts (1000V)
• Ideal for work in limited space

Product is designed so you can select your own set of Inserts, please ensure you choose the correct size and rating for your application.

Set 17170 containing 17171 handle, AB17170 hardshell case, 17100 2.5mm Allen Wrench, 3x 17179 Spare Blades, and a selection of Inserts (16mm, 25mm, 35mm, 50mm, 54.6mm, and 70mm) available upon request. Please contact OHUG for more information.

Weight & Dimensions (17170 Set): 235 x 210 x 55mm / 950g
