Introducing the LATEST release from Intercable - an all-new Solar Power Specialist Stripping Set!

Professional tools designed to cut, strip, and crimp solar cables and photovoltaic (PV) connectors.

Specifications:

• Easy handling
• Unlockable positive lock - ensures complete crimping
• Precisely manufactured profiles made of high-strength special steel
• Contact positioning with positioning aid
• With bolt for fall protection
• Ergonomically shaped soft handles

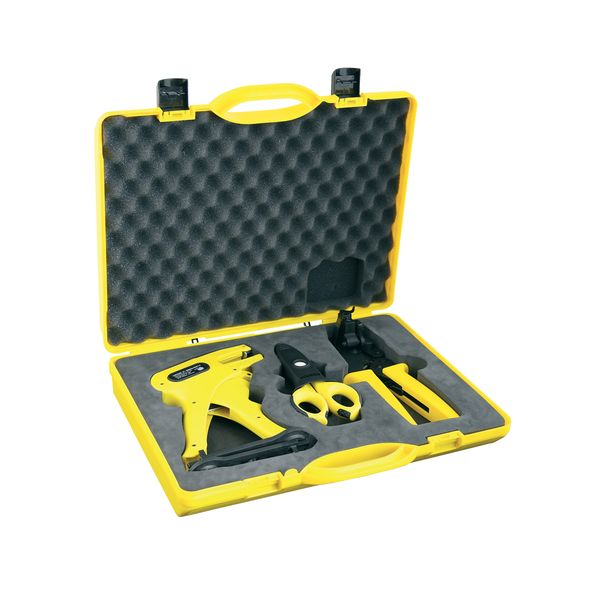

ICPVSET2 Set Contains:

• MPMC6: Mechanical Crimping Tool for PV contacts 2.5 - 6mm²
• AV8270: Cable Stripping Tool for PV Cables 1.5 - 6mm²
• 16020-F1: Electrician's Cable Cut-Crimp-Strip Scissors - in SPECIAL EDITION Black & Yellow colours
• 2x Installation Spanners for PV Plugs
• Rigid plastic case in SPECIAL EDITION Black & Yellow colours


Please follow this link for more information on the Special Edition Solar Kit!

Weight & Dimensions (Set inside Case): 380 x 345 x 90mm / 1600g

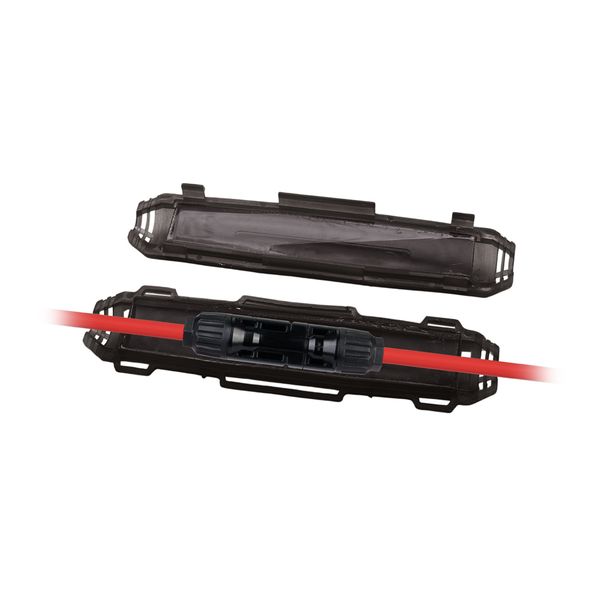

Raytech's new SolarCover: the extra dark cover with gel filler, designed for sealing connectors from 4 to 10 mm² for solar applications.

It prevents the deterioration of connectors, preserving their performance over time, thus avoiding malfunctions and difficult and expensive maintenance.
Resistant to UV rays, corrosion and immersion in water - even if salty or chlorinated. Ready, fast, re-enterable, and always inspectable.

• Made of UL 94-V2 polypropylene.
• Highly resistant to water, corrosion and frost.
• Complete with sealing silicone gel filler, non-toxic and safe.

SolarCover is the ideal accessory to protect cable connections for solar and photovoltaic systems over the seasons and consequently affected by variations in temperature and weather conditions. It also allows the reduction of risks from electric arcs and the resulting overheating.

• CEI EN 50393 as applicable
• Class 2 in accordance with CEI 64-8.
• Gel: UL 94-HB
• Casing mix: UL 94-V2
• Working temperature: 125°C
• Installation temperature: -40°C / +50°C
• Halogen-free Gel
• Loaded with CARBON BLACK
• UV resistant
• No flame propagation: CEI 20-35 IEC 60332-1 HD405-1 As applicable
• Self-ignition temperature: > 400° C
• Operating voltage: 1500V DC
• IP68 Tested / Certified
• IMQ Certified
